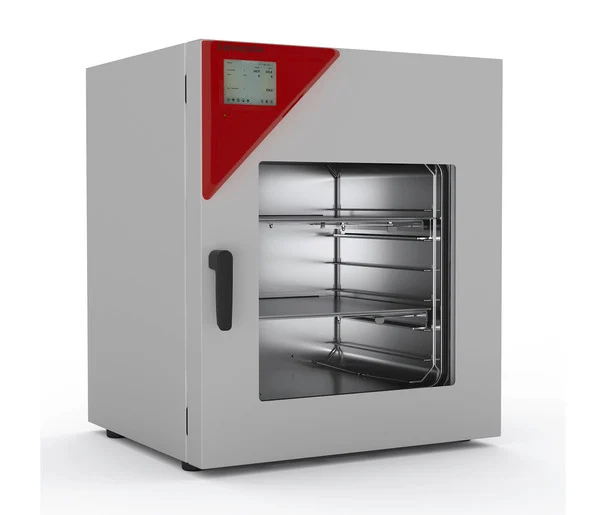

BINDER VDL: Vacuum drying chambers for flammable solvents
Looking to buy vacuum drying chamber technology that prioritizes uncompromising safety? The BINDER VDL series guarantees maximum protection when handling organic solvents. Designed as a premium explosion-protected vacuum drying chamber, it strictly conforms to ATEX directives. Delivering precise temperature control, uniform heat transfer, and an advanced safety concept, it is universally recognized as the best vacuum oven for flammable solvents globally. If you need a reliable vacuum drying chamber supplier India or want the best vacuum drying chamber price, you're in the right place.
Product Specifications at a Glance
Safety Compliance
ATEX EX II 2/3/- G
Temp Range
Ambient +9°C to 110°C
Controller
Touchscreen Data Logger
Door & Panel
Spring-Mounted Safety Glass
Heat Transfer
Aluminum Expansion Racks
Capacities
24 L | 55 L | 119 L
Select Chamber Capacity:
BINDER Authorized Dealer · PAN India Delivery & Installation
Advanced Engineering
Why use vacuum drying chambers?
What is a vacuum drying chamber and why is it essential for the safe drying of organic solvents? A standard convection oven circulates hot air, which can be dangerous or disastrous when handling highly flammable solvents. By utilizing a controlled vacuum drying system, a laboratory vacuum oven dramatically lowers the boiling point of liquids inside the chamber. This allows for rapid, heat-sensitive sample drying without exposing the materials to dangerously high temperatures or creating explosive vapor mixtures with oxygen.
When analyzing the difference between a vacuum drying chamber vs drying oven, safety is paramount. The premium vacuum drying oven by BINDER—specifically the VDL series—is explicitly certified as an ATEX directive vacuum oven. As a leading vacuum drying chamber distributor India, we provide these German vacuum drying chambers for procurement tenders, ensuring your laboratory maintains strict international safety compliance.
Key Features
Unmatched Safety & Precision Features
The BINDER vacuum drying chamber for solvents is packed with advanced technology designed for high-end research and rigorous industrial use. It stands out as a highly reliable vacuum drying chamber with these core features:
Explosion Proof Drying Chamber
An ATEX compliant vacuum drying chamber (EX II 2/3/- G IIB T3 Gb/Gc/- X) engineered for hazardous areas. It features a vacuum drying chamber with large viewing window backed by a spring-mounted safety glass panel with specialized shatter protection.
Fast Drying Vacuum Chamber

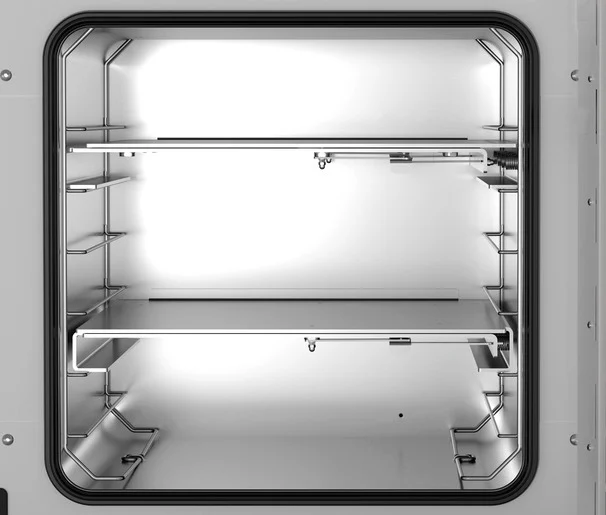

Experience a fast drying vacuum chamber delivering residue-free drying. The uniform heat transfer vacuum chamber utilizes patented aluminum expansion racks, allowing maximum heat conduction directly to your samples under a low pressure drying oven environment (pressure control below 100 mbar).

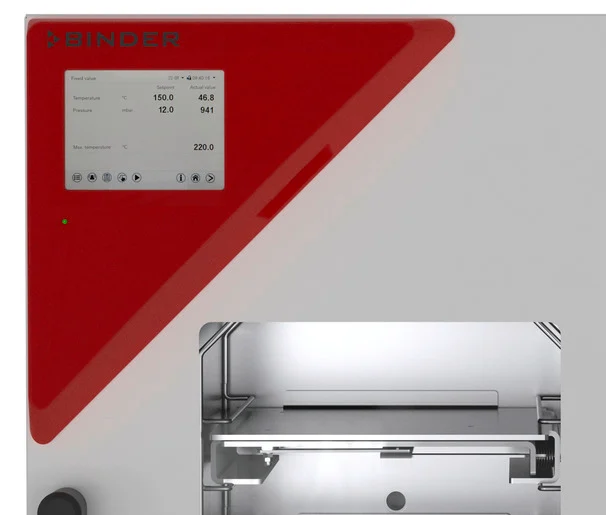

Smart MB2 Touchscreen Controller
A sophisticated vacuum drying chamber with touchscreen controller that offers a real-time temperature display and pressure display. The laboratory vacuum oven with automatic ventilation and data logger allows seamless tracking, alongside a vacuum drying chamber with USB export and Ethernet interface for data management.
Inert Gas Connection
The unit features a vacuum drying chamber with inert gas connection, allowing you to flush the chamber with cross-flow inert gas. This ensures an impeccably safe solvent evaporation chamber environment for highly sensitive organic solvents.
Industry Use Cases
Versatile Laboratory Applications
Finding a laboratory drying chamber supplier who understands your specific workflow is critical. The BINDER VDL acts as the optimal vacuum drying chamber for laboratory samples across multiple demanding sectors:
Chemical Analysis
The primary vacuum drying chamber for chemistry lab use. Designed explicitly as a vacuum drying chamber for hazardous solvents and general sample preparation.
Material Testing
A highly precise precise temperature vacuum oven acting as the best vacuum drying chamber for material testing and R&D labs seeking uniform heat transfer.
Electronics Drying
Using a gentle drying vacuum chamber ensures complete moisture removal without thermal damage. It is an ideal vacuum drying chamber for electronics drying.
Pharma & QC
The most trusted vacuum drying chamber for pharma research. Essential solvent safety drying equipment functioning as a vacuum drying chamber for QC labs.
Industrial Scale Use

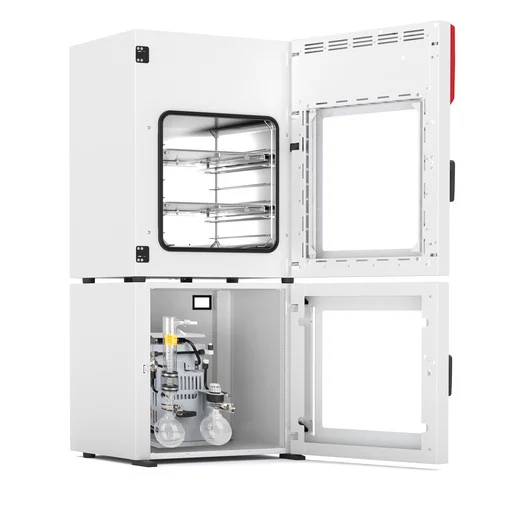

Whether choosing the vacuum drying chamber 56 L or the large vacuum drying chamber 115 L, these are heavy-duty models perfectly suited as a robust vacuum drying chamber for industrial use.
Full Technical Data
Technical Specifications
Detailed parameters for the BINDER VDL Series vacuum drying ovens.
Performance & Safety
| Temperature Range | Ambient +9 °C to +110 °C |
| ATEX Conformity | EX II 2/3/- G IIB T3 Gb/Gc/- X |
| Controller | Touchscreen MB2 with real-time clock |
| Pressure Display | Actual pressure displayed on screen |
| Safety Window | Spring-mounted shatterproof safety glass |
| Ventilation | Automatic ventilation at end of process |
Interfaces & Logging
| Data Export | USB interface for data logger |
| Network | Ethernet interface |
| Gas Connection | Inert gas connection for cross-flow |
| Alarms | Independent temp safety device class 2 (DIN 12880) |
Interior & Accessories
| Interior Material | Stainless Steel (V4A / 1.4404) |
| Heat Transfer | Aluminum expansion racks |
| Standard Racks | 2 racks included standard |
| Access Port | DN 16 measurement access port |

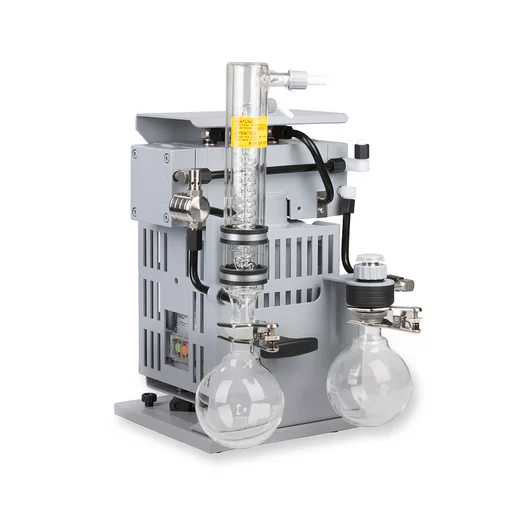

| Pump Compatibility | ATEX vacuum pumps available separately |
Dimensions & Power
| Capacities | 24L, 55L, 119L |
| Voltage | 200...230 V 1~ 50/60 Hz |
| Phase | Single phase |
| Installation | Benchtop or Base module mountable |
Comparing Premium Vacuum Ovens
When looking for the top vacuum drying chamber brand, laboratories often compare BINDER vs Thermo Fisher vacuum oven models, or BINDER vs Memmert vacuum oven and BINDER vs Yamato vacuum oven systems. BINDER stands out due to its superior safety concept for the safe drying of organic solvents.
Furthermore, it is critical to understand the difference between a flammable vs non-flammable vacuum chamber. The BINDER VD series (VD vacuum drying chamber) is an exceptional vacuum drying chamber for non-flammable solvents. However, if your lab handles hazardous chemicals, you must use an ATEX vacuum oven vs standard vacuum oven. The VDL safety vacuum drying chamber is exclusively engineered as a vacuum oven for flammable organic solvents.
VDL Series Capacities
| Feature | VDL 23 Compact Benchtop | VDL 56 Medium Capacity | VDL 115 Large Capacity |
|---|---|---|---|
| Interior Volume | 24 Liters | 55 Liters | 119 Liters |
| Temp Range | Ambient +9°C to 110°C | Ambient +9°C to 110°C | Ambient +9°C to 110°C |
| Racks (Standard / Max) | 2 / 4 | 2 / 5 | 2 / 6 |
| Load Capacity per Rack | 20 kg | 20 kg | 20 kg |
| Total Max Load | 35 kg | 40 kg | 65 kg |
| ATEX Protection | ✓ Yes | ✓ Yes | ✓ Yes |
Expert Guidance
Frequently Asked Questions
Common queries regarding our BINDER vacuum drying chambers and procurement.
ATEX is a European directive detailing the strict safety requirements for equipment used in explosive atmospheres. An ATEX compliant vacuum drying chamber (like the VDL) is designed to prevent the ignition of flammable vapors, acting as an explosion-protected vacuum drying chamber safe for drying hazardous organic solvents.
You must use an explosion proof drying chamber specifically certified for the task. The BINDER VDL utilizes a specialized safety concept featuring a spring-mounted safety glass panel, pressure control, and a vacuum drying chamber with inert gas connection to safely flush explosive vapors.
The primary difference relies on your solvent type. The BINDER VD series is a high-performance vacuum drying chamber for non-flammable solvents. The VDL series incorporates the advanced safety concept required for handling highly flammable solvents (BINDER vacuum drying chambers flammable solvents).
It operates by lowering the pressure inside the chamber via an external vacuum pump, which significantly lowers the boiling point of liquids. This allows for fast drying and solvent drying under vacuum at lower, gentler temperatures, ensuring residue-free drying chamber results for heat-sensitive samples.
Selection depends on your throughput and sample size. A small vacuum drying chamber like the vacuum drying chamber 23 L (VDL 23) is perfect for compact benchtop R&D. For higher throughput, the medium vacuum drying chamber (vacuum drying chamber 56 L) or the high capacity vacuum drying chamber (vacuum drying chamber 115 L) is recommended.
Yes, Global Bioscience Solution is an authorized vacuum drying chamber distributor India, acting as a direct vacuum drying chamber dealer and BINDER dealer India. We offer sales, procurement assistance for tenders (vacuum drying chamber for tender), vacuum drying chamber wholesale options, installation, and vacuum drying chamber AMC (Annual Maintenance Contracts) across the country.
