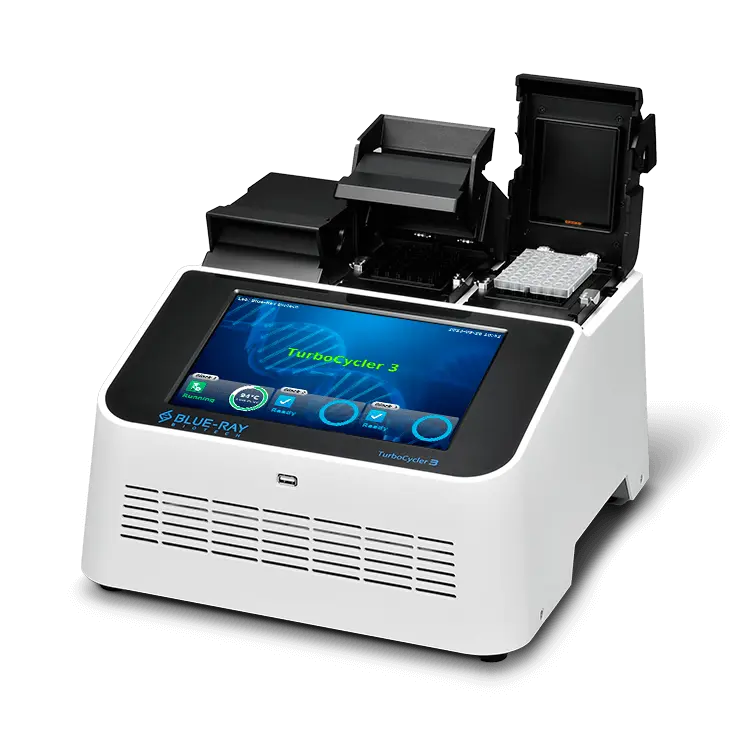

TurboCycler 3 at a Glance
The TurboCycler 3 is a triple-block gradient PCR thermal cycler made by Blue-Ray Biotech and supplied in India by Global Bioscience Solutions (Bengaluru). It has three independent 48-well blocks (up to 144 x 0.2 mL tubes), an 8-zone gradient over 30–100°C, an adjustable 0.1–5.0°C/sec ramp, ±0.25°C uniformity, a 10.1-inch capacitive touchscreen, USB export, storage for over 4,000 protocols and power-failure restart. It suits shared labs, NGS and qPCR optimisation, CRISPR workflows and pathogen detection.
Technical Specifications: TurboCycler 3
A high performance PCR thermal cycler built for flexibility and temperature uniformity.
Blue-Ray TurboCycler 3 performance data
| Block Configuration | Three independent 48-well blocks |
| Sample Capacity | Up to 144 x 0.2 mL tubes |
| Heating/Cooling Technology | Peltier elements |
| Ramp Rate | Adjustable, 0.1–5.0 °C/sec |
| Temperature Accuracy | ±0.2°C at 55°C |
| Temperature Uniformity | ±0.25°C across the block |
| Gradient | 8-zone gradient, 30–100°C, 30°C span |
| Lid Heating | 105°C / 130°C, adjustable |
| User Interface | 10.1-inch color capacitive touchscreen |
| Data Interface | USB data export |
| Protocol Storage | Over 4,000 protocols stored internally |
| Supplier | Global Bioscience Solutions, Bengaluru, India |
TurboCycler 3 vs TurboCycler 2
| Feature | TurboCycler 3 | TurboCycler 2 |
| Block format | 3 independent blocks, 3 x 48 wells | Single 96-well block |
| Protocols at once | Up to 3 | 1 |
| Ramp rate | 0.1–5.0 °C/sec | 0.1–5.5 °C/sec |
| Touchscreen | 10.1 inch | 7 inch |
| Best for | Shared, high-throughput labs | Individual researchers, teaching labs |
Key Innovations and Advantages
✓
3 Independent 48-Well Blocks
Run three different protocols at the same time on one multi-block thermal cycler, ideal for shared labs.
✓
8-Zone Gradient (30–100°C)
A programmable gradient speeds up assay optimisation by testing several annealing temperatures in one run.
✓
Tool-Free Interchangeable Blocks
Blocks can be swapped without tools, minimising downtime for a reliable thermal cycler for research.
✓
Power-Failure Auto-Restart
The cycle resumes when power returns, protecting samples run overnight.
✓
10.1-inch Color Touchscreen and Protocol Memory
Set up quickly on a large capacitive screen and store over 4,000 protocols.
How to Run Multiple Protocols and Optimise Annealing
- Prepare reactions: Set up PCR reactions with your primer pair and load them into the blocks you need (up to 3 x 48).
- Assign protocols per block: Give each of the three independent blocks its own program, for example one gradient run and two routine runs.
- Enable the gradient: On the annealing step of the gradient block, set the temperature span across the 8 zones.
- Run and analyse: Start all blocks, then analyse products by gel or qPCR to choose the best annealing temperature.
Applications in Life Science and Molecular Diagnostics
This DNA amplification thermal cycler supports cloning, genomics and diagnostics. Quantify template first with the EzDrop 1000 microvolume spectrophotometer, and speed up tube handling with the EzDecap decapper.
✓
NGS and qPCR Protocol Optimisation
Optimise multiplex PCR and library prep conditions with the gradient before sequencing or qPCR.
✓
CRISPR and Genome Editing Workflows
Adjustable ramp rate (0.1–5.0°C/sec) gives control over sensitive annealing steps.
✓
Pathogen Detection and Clinical Research
A PCR machine for diagnostic labs amplifying viral and bacterial DNA/RNA targets.
✓
High-Throughput Quality Control
144-sample capacity across three blocks suits diagnostic companies and biotech startups running volume QC.
Institutional Procurement and Tenders
We are an authorized scientific instrument supplier in India. Read our guide to scientific instrument suppliers in India or see all Blue-Ray Biotech products.
✓
Thermal Cycler for Government and Institutional Tenders
Quotations and documentation for government labs, research institutes and universities, including GeM requirements.
✓
University and College Laboratories
An intuitive touchscreen and three independent blocks let several student groups run experiments at the same time.
✓
Installation, Training and Warranty
As an authorized thermal cycler distributor in India, we provide installation, user training and warranty support.
Related Products
Frequently Asked Questions
What is a thermal cycler used for?
A thermal cycler amplifies DNA or RNA segments by PCR, cycling through the temperatures needed for denaturation, annealing and extension.
How does a PCR thermal cycler work?
It uses Peltier elements to rapidly heat and cool the sample blocks. The TurboCycler 3 ramps at up to 5.0°C/sec so protocols finish faster.
What is a gradient thermal cycler?
A gradient PCR machine sets different temperatures across zones of one block, for example 8 zones, so you can find the best annealing temperature for new primers in a single run.
How many wells does the TurboCycler 3 have?
It has three independent 48-well blocks, for up to 144 samples in 0.2 mL tubes, or three different protocols at once.
What is a triple block PCR cycler?
A triple block cycler has three separately controlled blocks in one instrument, so several users can run different programs at the same time.
What is the ramp rate of the TurboCycler 3?
The adjustable ramp rate is 0.1 to 5.0°C per second.
What is the difference between TurboCycler 2 and TurboCycler 3?
The TurboCycler 2 is a single 96-well block cycler with a 7-inch screen. The TurboCycler 3 has three independent 48-well blocks and a 10.1-inch screen. See our TurboCycler 2 vs 3 guide.
What is the difference between PCR and qPCR?
Standard PCR amplifies DNA that is analysed at the end, for example by gel electrophoresis. qPCR monitors amplification in real time with fluorescent dyes. A thermal cycler is often used first to optimise assays.
Can the TurboCycler 3 be used for CRISPR work?
Yes. Its adjustable ramp rate and gradient help optimise PCR steps used in CRISPR and genome editing workflows.
How do I check DNA concentration before PCR?
Quantify template DNA with a microvolume spectrophotometer such as the EzDrop 1000 so each reaction gets the right amount.
What is the thermal cycler price in India?
Price depends on configuration and quantity. As an authorized Blue-Ray Biotech distributor in Bengaluru we provide institutional quotations with installation and warranty details.
Do you provide installation, training and warranty?
Yes. Global Bioscience Solutions provides installation, user training and warranty support across India.
Can this be supplied for tenders and institutional purchases?
Yes. We supply universities, research institutes, government facilities and pharma companies, with GeM and tender documentation on request.
