GloQube Plus

GloQube Plus

GloQube Plus Dual-Chamber Glow Discharge

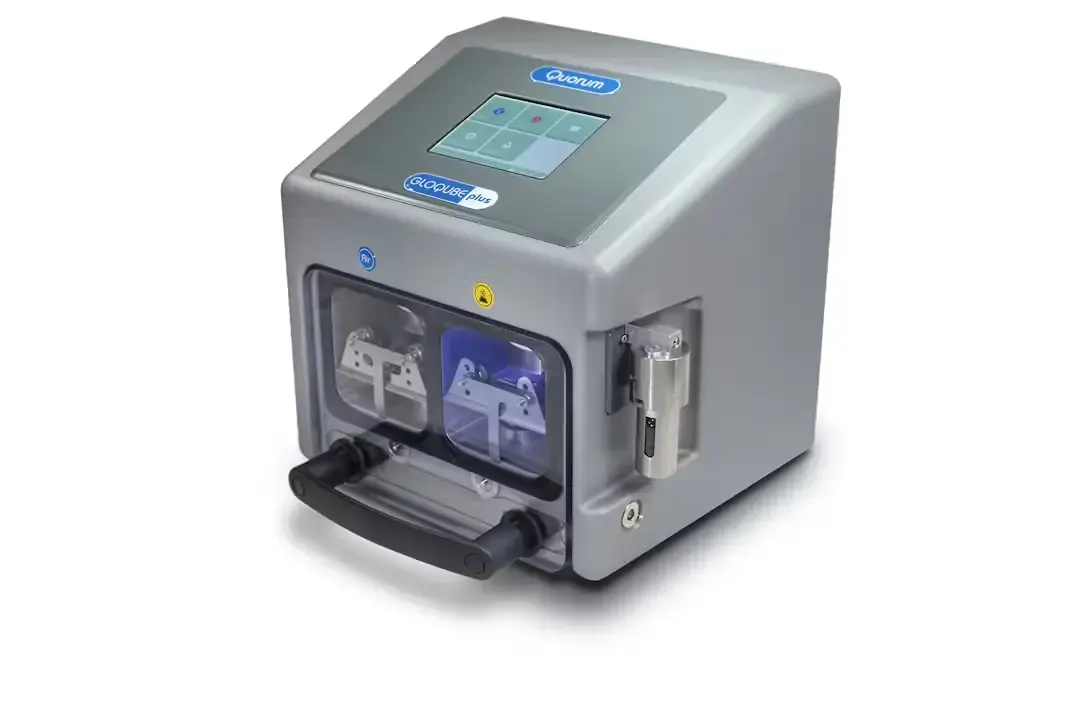

GloQube Plus Dual Chamber GloQube Plus for TEM Grid Prep GloQube Plus System View
Authorized Quorum Distributor
Category: Glow Discharge & Surface Modification

GloQube Plus Dual-Chamber Glow Discharge

The Quorum GloQube Plus is a specialized dual-chamber glow discharge system designed for high-quality TEM grid preparation. It enables independent in-air hydrophilization and chemical vapour treatment (such as Polylysine) without any risk of cross-contamination.

Featuring two independent vacuum chambers, adjustable stage heights, and a 36-grid holder, the GloQube Plus streamlines the workflow for cryo-EM and molecular biology labs. With short cycle times and fully automated positive/negative DC glow, it ensures consistent surface modification for optimal nanoparticle and macromolecule imaging.

Request Quote Download Brochure

✓ Dual Independent Chambers    ✓ 36-Grid Capacity    ✓ No Cross-Contamination

Dual Chamber
System
36-Grid
Holder
In-Air & Vapour
Treatment
Touch Screen
Control
Prevent Cross
Contamination

Technical Specifications of GloQube Plus

Quorum GloQube Plus Performance Data
Instrument TypeDual Chamber Glow Discharge System
Plasma Current1 - 50 mA (Selectable)
HV Supply800 V DC (Positive & Negative Polarity)
Process Time1 - 900 seconds
Sample StageHolders for 36 TEM Grids or 25x75mm Slide
Stage HeightAdjustable (12.5mm, 22.5mm, 35mm)
Vapour AgentPolylysine, Methanol, Alkylamine, etc.
Pump Hold0 - 72 hours
Vacuum PumpRotary Pump Required (e.g., Pfeiffer Duo 6)
Dimensions366mm (W) x 336mm (H) x 364mm (D)
Weight19.4 kg

Comprehensive Features of GloQube Plus

  • ✓
    Dual Independent Chambers One dedicated "Clean" chamber for in-air hydrophilization and a separate "Vapour" chamber for chemical treatments, ensuring absolutely no cross-contamination.
  • ✓
    High-Throughput Grid Holder Specially designed 36-place TEM grid holder allows simultaneous processing, drastically reducing preparation time for large projects.
  • ✓
    Adjustable Stage Height Three variable stage heights (12.5, 22.5, 35mm) allow users to fine-tune the plasma intensity and uniformity for delicate samples.
  • ✓
    Safe Vapour Delivery Integrated vial holder and sealed delivery system allow safe use of reagents like Polylysine and Methanol for surface modification.
  • ✓
    Automatic Polarity Switching Effortlessly switch between positive and negative DC glow discharge modes via the touch screen to suit different support films.
  • ✓
    Intelligent Venting Fast and slow vent options prevent sample disturbance, protecting delicate carbon films from breakage after processing.

Applications: TEM Grid Hydrophilization & Vapour Treatment

  • ✓
    TEM Grid Hydrophilization Converts hydrophobic carbon films to hydrophilic, essential for uniform spreading of aqueous solutions and negative staining.
  • ✓
    Chemical Vapour Treatment Applies surface modifications using reagents like Polylysine to improve adhesion of specific proteins and nucleic acids.
  • ✓
    Protein & Antibody Orientation Controls surface charge and wettability to ensure proper orientation of antibodies and macromolecules for imaging.
  • ✓
    Nanoparticle Studies Ensures even dispersion of nanoparticles on the grid surface, preventing aggregation and improving analysis.
  • ✓
    Soft Plasma Cleaning Gently removes hydrocarbon contamination from fragile carbon films without damaging the support structure.

GloQube Plus Frequently Asked Questions

We offer competitive pricing for the Quorum GloQube Plus in India. Please click "Request Quote" for a formal proposal including the main unit and pump.
The dual chambers prevent cross-contamination. One is kept strictly for "clean" air glow discharge, while the second is used for chemical vapours, ensuring reliable results for sensitive biological samples.
The system requires a rotary vacuum pump (5 m³/hr). We typically supply the Pfeiffer Duo 6 as part of the complete package for optimal performance.
Yes, the GloQube Plus includes a drawer-style door with a holder that accommodates up to 36 TEM grids, making it ideal for high-throughput laboratories.
Common reagents include Polylysine, Methanol, and Alkylamine. These are loaded into a sealed vial holder, and the vapour is introduced into the designated chamber under vacuum.
