In Stock
SKU: LAB-MIC-61iFL
SLV-61iFL Research Fluorescence Microscope
Editor's Choice: A research fluorescence microscope designed for high-sensitivity biological fluorescence imaging. Features Infinite Plan Semi-APO fluorescence objectives and a modular trinocular fluorescence microscope head, ideal for immunofluorescence microscopy.
Optics: Semi-APO (4x, 10x, 20x, 40x, 100x)
Illumination: 100W Mercury HBO + 12V Halogen
Filters: Blue, Green, UV (Multi-Fluorescence)
Official Distributor Warranty Included
Key Features & Optics
The SLV-61iFL utilizes a precision infinity optical system microscope design, ensuring edge-to-edge sharpness crucial for laboratory fluorescence microscopy. The system includes high-performance Semi-APO fluorescence microscope objectives (4x, 10x, 20x, 40x, 100x), which offer superior chromatic correction compared to standard achromats.
Illumination is powered by a 100W Mercury lamp fluorescence illumination unit for epi-fluorescence excitation, alongside a 12V 100W Halogen source for transmitted light. This dual capability makes it a versatile brightfield and fluorescence microscope solution.
Technical Capabilities

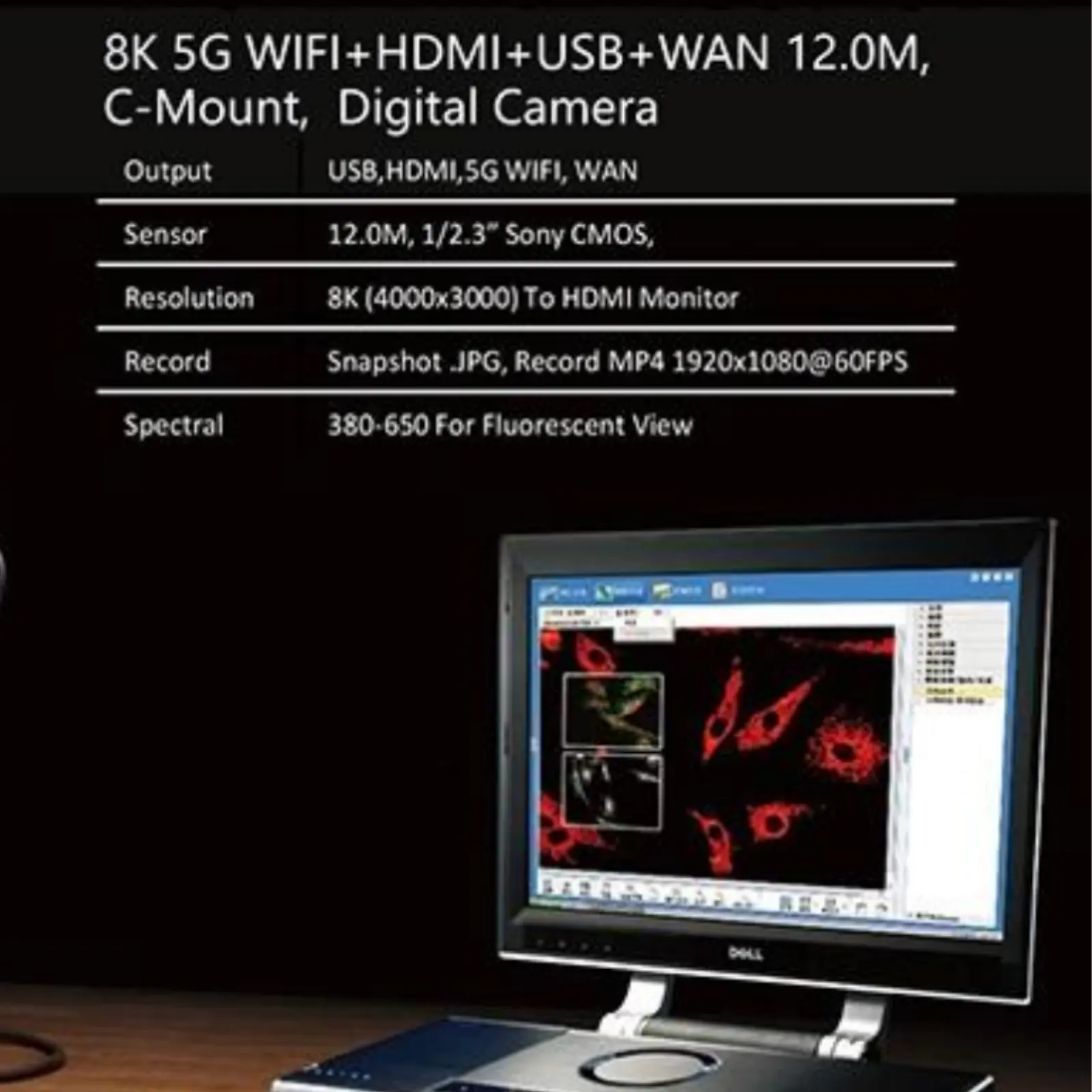

The modular microscope system features a robust trinocular fluorescence microscope head with a dedicated photo port for digital imaging. Its large double-layer mechanical stage (187×166mm) and swing-out achromatic condenser microscope (N.A. 0.9/0.25) accommodate a wide variety of sample vessels.
| Technical Spec | Research Application |
|---|---|
| Multi-fluorescence Filter (B/G/UV) | Immunofluorescence microscopy (Multiplexing) |
| Semi-APO Objectives | High-res cell biology microscope imaging |
| Modular Frame | Upgrade to DIC fluorescence microscope |
| Phase Contrast Ready | Live cell imaging microscope analysis |
Research Applications
The SLV-61iFL is engineered for biological fluorescence imaging in clinical and research labs. It excels in protein localization microscope tasks, allowing researchers to track specific biomarkers within cells using fluorophores like DAPI, GFP, and FITC.
Frequently Asked Questions
What magnifications does the SLV-61iFL offer?
The microscope includes Semi-APO objectives of 4x, 10x, 20x, 40x, and 100x. When combined with 10x eyepieces, this provides a total magnification range of 40x to 1000x.
What illumination systems are included?
It features a 100W Mercury lamp housing for epi-fluorescence excitation and a 12V 100W Halogen lamp for transmitted brightfield illumination.
What imaging techniques are supported?
Standard techniques include Epi-fluorescence and Brightfield. The system is upgradeable for Phase Contrast, Darkfield, and DIC (Differential Interference Contrast).
What fluorescence filters are included?
The standard configuration includes Blue (B), Green (G), and Ultraviolet (UV) excitation filter blocks, suitable for DAPI, FITC, GFP, and TRITC staining.
