NuNano SCOUT 150 Silicon AFM Probe | Soft Sample Imaging
The NuNano SCOUT 150 is a premier general purpose afm tip specifically tailored for delicate imaging environments. Engineered for exceptional performance as a tapping mode afm probe air and ac mode afm probe softer materials, it provides precise afm topography polymers mapping without exerting damaging forces on your sample.

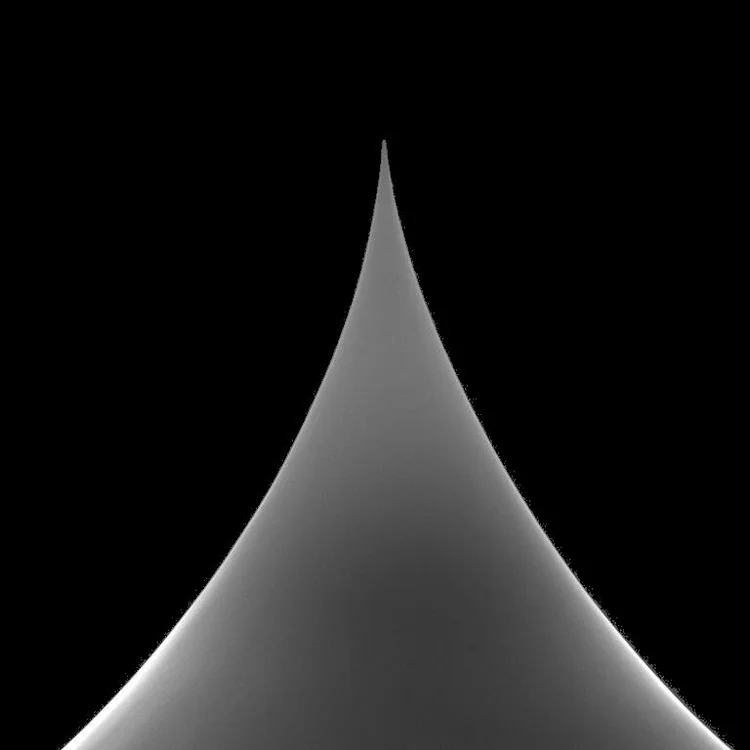

Built with a fine-tuned scout 150 18 n/m spring constant and a 150 khz resonant frequency, it utilizes a highly flexible afm cantilever 225 µm long. Accompanied by a brilliantly sharp afm tip conical 10 nm radius, the SCOUT 150 is the definitive silicon afm probe for resolving high-quality nanoscale topography on thin films and biological samples.
✓ Ideal for Polymers ✓ 18 N/m Spring Constant ✓ Pack of 10 Probes
150 kHz
Frequency
Frequency
18 N/m
Spring Constant
Spring Constant
< 10 nm
Sharp Tip Radius
Sharp Tip Radius
Soft Matter
Optimized
Optimized
Tapping Mode
in Air
in Air
Technical Specifications: NuNano SCOUT 150
The SCOUT 150 is meticulously fabricated to provide gentle yet high-resolution interaction with delicate substrates. Below are the precise specifications of the cantilever and tip geometry.
| Cantilever Specifications | |
|---|---|
| Material & Doping | N type silicon, Antimony doped afm cantilever |
| Resistivity | 0.015 – 0.025 Ω·cm |
| Cantilever Shape | Rectangular |
| Spring Constant | Nominal 18 N/m (Range: 5 - 25 N/m) |
| Resonant Frequency | Nominal 150 kHz (Range: 120 - 170 kHz) |
| Length | 225 µm |
| Width | 30 µm |
| Thickness | 5.5 µm |
| Reflective Backside Coatings |
Uncoated: No additional coating Aluminium (RAL): 40 nm Al coating Gold (RAU): 5 nm Ti / 40 nm Au coating |
| Tip Specifications | |
| Tip Shape | Conical |
| Tip Radius | Nominal 5 nm (Guaranteed < 10 nm radius) |
| Tip Height | 12 µm (Range: 10 - 13 µm) |
| Tip Setback | 7.5 µm (Range: 6.5 - 8.5 µm) |
| Cone Angle | Nominal 25° (Range: 15° - 40°) |
| Packaging | |
| Quantity | AFM probes pack of 10 |
Comprehensive Coating Options for the SCOUT 150
To guarantee optimal laser reflection for various scanning probe microscopes, the scout 150 afm probe is available with specific backside treatments.
-
SCOUT 150 Uncoated AFM Probes The standard uncoated afm probes softer imaging option is excellent for standard setups not requiring a metallic boost in laser reflectivity.
-
SCOUT 150 RAL (Aluminium Backside) Features an aluminium backside afm probe. The scout 150 ral aluminium reflective coating (40 nm Al) significantly improves signal-to-noise ratios during tapping mode afm polymers air imaging.
-
SCOUT 150 RAU (Gold Backside) Features a stable gold backside afm probe. The scout 150 rau gold reflective coating (5 nm Ti / 40 nm Au) is perfect for advanced optical alignment and chemically inert environments.
Key Applications for the SCOUT 150 Soft Sample Probe
-
Polymers & Thin Films The highly responsive afm probe low spring constant makes it the definitive choice as an afm probe for thin films polymers, avoiding the surface deformation caused by stiffer cantilevers.
-
Biological Samples & Soft Matter Routinely deployed in university afm probes polymers research, these afm probes biological samples gently trace over delicate organic structures to deliver pristine topographical data.
-
Non-Contact & Tapping Modes The perfect non contact afm probe polymers solution, generating high-fidelity imaging with its afm tip surface topography soft matter interactions.
Frequently Asked Questions: SCOUT 150 AFM Probes
With an 18 N/m spring constant, the SCOUT 150 is the premier afm probe softer samples choice. It is perfectly optimized for tapping mode afm polymers air, biological samples, and delicate thin films where low force imaging is required to prevent sample damage.

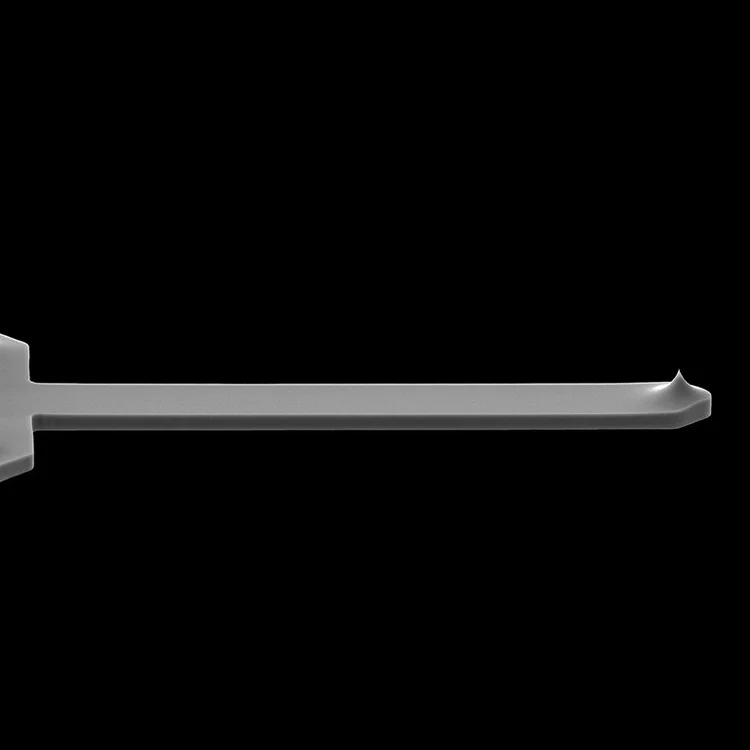

This model utilizes a rectangular afm cantilever 225 µm long, 30 µm wide, and 5.5 µm thick. The afm tip is conical with a 10 nm radius (nominal 5 nm) and a tip height of 12 µm, making it highly effective as a nanoscale probe polymers air component.
The SCOUT 150 features a lower afm probe spring constant 18 n/m and lower silicon afm probe 150 khz resonant frequency, specifically tailored for afm probes soft matter research. In contrast, the SCOUT 350 (42 N/m, 350 kHz) is significantly stiffer and intended for hard surface imaging.
Yes, we offer uncoated afm probes softer imaging models, the scout 150 ral aluminium reflective (40 nm Al) coating, and the scout 150 rau gold reflective (5 nm Ti / 40 nm Au) coating to match your laboratory's specific optical tracking requirements.
NuNano SCOUT 150 probes are supplied exclusively in an afm probes pack 10. This ensures a steady supply of scout 150 low dud rate probes for consistent, uninterrupted university afm probes polymers research.
If you wish to buy scout 150 afm probes, fill out the quotation form on our page. We will promptly provide the exact nunano scout 150 price, including specific ral aluminium scout 150 price and rau gold scout 150 price details for bulk scout 150 afm tips orders.
