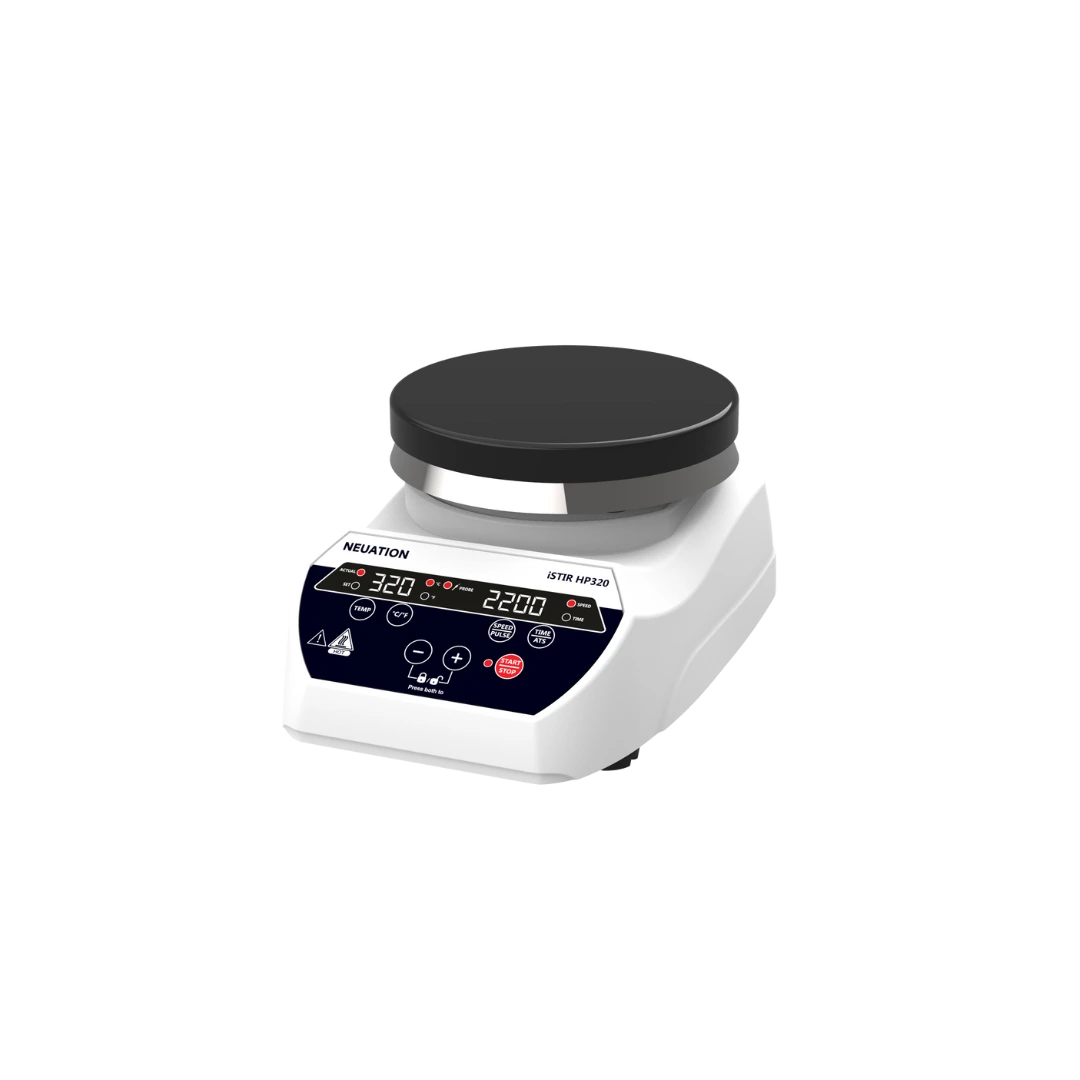

iStir HP320 Digital Hot Plate Stirrer
The iStir HP320 is a high-performance digital hot plate magnetic stirrer designed for precision in research and quality control labs. It offers a powerful 10 Liter stirring capacity and heats from ambient to 320°C with exceptional accuracy (±1°C). The ceramic-coated stainless steel plate ensures durability and chemical resistance. Included with the unit is a PT-1000 probe for precise medium temperature control, making it ideal for organic synthesis, media preparation, and titration.
✓ Max Temp 320°C ✓ 10L Stirring Capacity ✓ PT-1000 Probe Included
Heats up to
320°C
320°C
10 Liters
Capacity
Capacity
2200 RPM
Max Speed
Max Speed
Microprocessor
Controlled
Controlled
Ceramic Coated
SS Plate
SS Plate
Technical Specifications of iStir HP320
| iStir HP320 Performance Data | |
|---|---|
| Stirring Capacity | 10 Liters (Water) |
| Heating Range | Ambient to 320°C (±1°C Accuracy) |
| Variable Speed | 200 - 2200 RPM (10 RPM steps) |
| Top Plate Material | Stainless Steel with Ceramic (Enamel) Coating |
| Plate Dimensions | 140 x 140 mm |
| Temp Probe | PT-1000 included |
| Timer Setting | 1 - 999 mins & Infinite Mode |
| Motor Type | Powerful DC Motor |
| Safety Temp | Safe temperature setting up to 345°C |
| Dimensions (WxDxH) | 248 x 156 x 104 mm |
| Protection Class | IP 21 |
| Weight | 2.2 kg |
Product Overview: iStir HP320 Hot Plate Magnetic Stirrer
The iStir HP320 combines high-speed stirring with precise temperature control, making it an essential tool for chemistry labs, pharmaceutical research, and process development. Its compact design saves valuable bench space while the ceramic-coated stainless steel plate ensures excellent resistance to chemicals and thermal shock.
Equipped with a microprocessor control, the unit delivers reliable performance even under heavy loads (up to 10L). The included PT-1000 temperature probe allows for accurate measurement of the solution's temperature, not just the plate. With features like last run memory, keypad lock, and a safe temperature limit of 345°C, the iStir HP320 is built for safety and efficiency in solution mixing and organic synthesis.
Key Features of iStir HP320
-
High Temperature Accuracy Heats up to 320°C with ±1°C accuracy, ideal for sample heating and titration tasks.
-
Powerful 10L Stirring Robust motor mixes large volumes (up to 10L) with variable speeds from 200 to 2200 RPM.
-
Ceramic Coated SS Plate Durable 140x140mm top plate offers superior chemical resistance and efficient heat transfer.
-
External Temp Probe (PT-1000) Included probe allows for direct and precise temperature control of the liquid medium.
-
Advanced Safety Features Includes safe temperature setting (345°C), auto-restart after power failure, and keypad lock.
Compatible Accessories (Optional)
| Part Name | Cat # | Details |
|---|---|---|
| PT 1000 Probe | HS20-T2 | External temperature sensor (Included) |

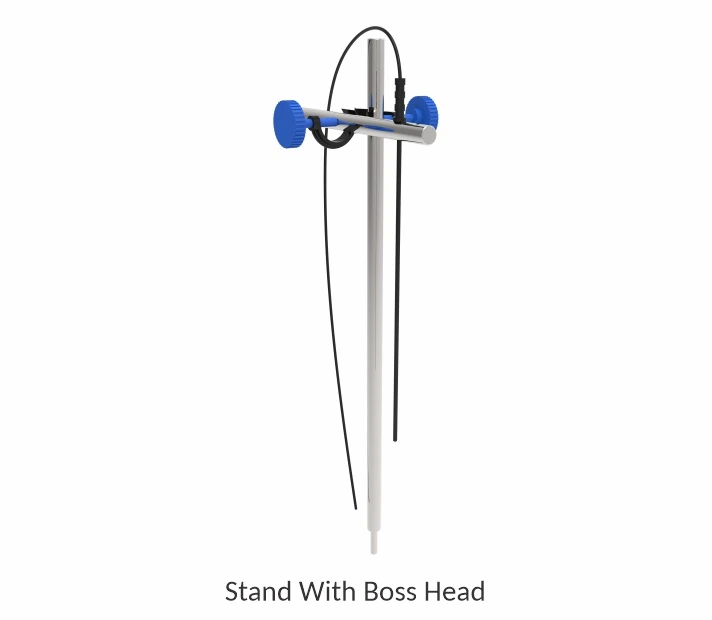

| Stand with Boss Head | HS20-S2 | Support stand for holding the probe |
| Reaction Blocks | HS20-RB Series | Round bottom blocks (50ml, 100ml, 250ml, 500ml) |
| Quarter Blocks | HS20-Q Series | Blocks for vials (4x20ml, 4x30ml, 12x4ml, etc.) |
| Carrying Plate | HS20-QP | Base plate for reaction blocks |
Applications: Chemistry & Pharma
-
Chemical Synthesis Precise heating and stirring for organic synthesis and reaction optimization.
-
Media Preparation Uniform mixing and heating for biotech media and buffer preparation.
-
Titration & Dissolution Reliable stirring for titration endpoints and drug dissolution studies.
-
Quality Control Standard tool for QC labs requiring accurate temperature regulation.
iStir HP320 Frequently Asked Questions
We offer competitive pricing for the iStir HP320 as authorized Neuation distributors. Please use the "Request Price" button to get a formal GST quotation instantly.
Yes, the iStir HP320 comes standard with the PT-1000 temperature probe for measuring the medium's temperature directly.
The powerful motor can stir up to 10 Liters of water, making it suitable for both small and large volume applications.
Yes, the top plate is made of Stainless Steel 304 with a ceramic enamel coating, offering excellent resistance to corrosive chemicals and acids.
Yes, the unit features an "Infinite" mode for continuous operation, alongside a timer that can be set from 1 to 999 minutes.
