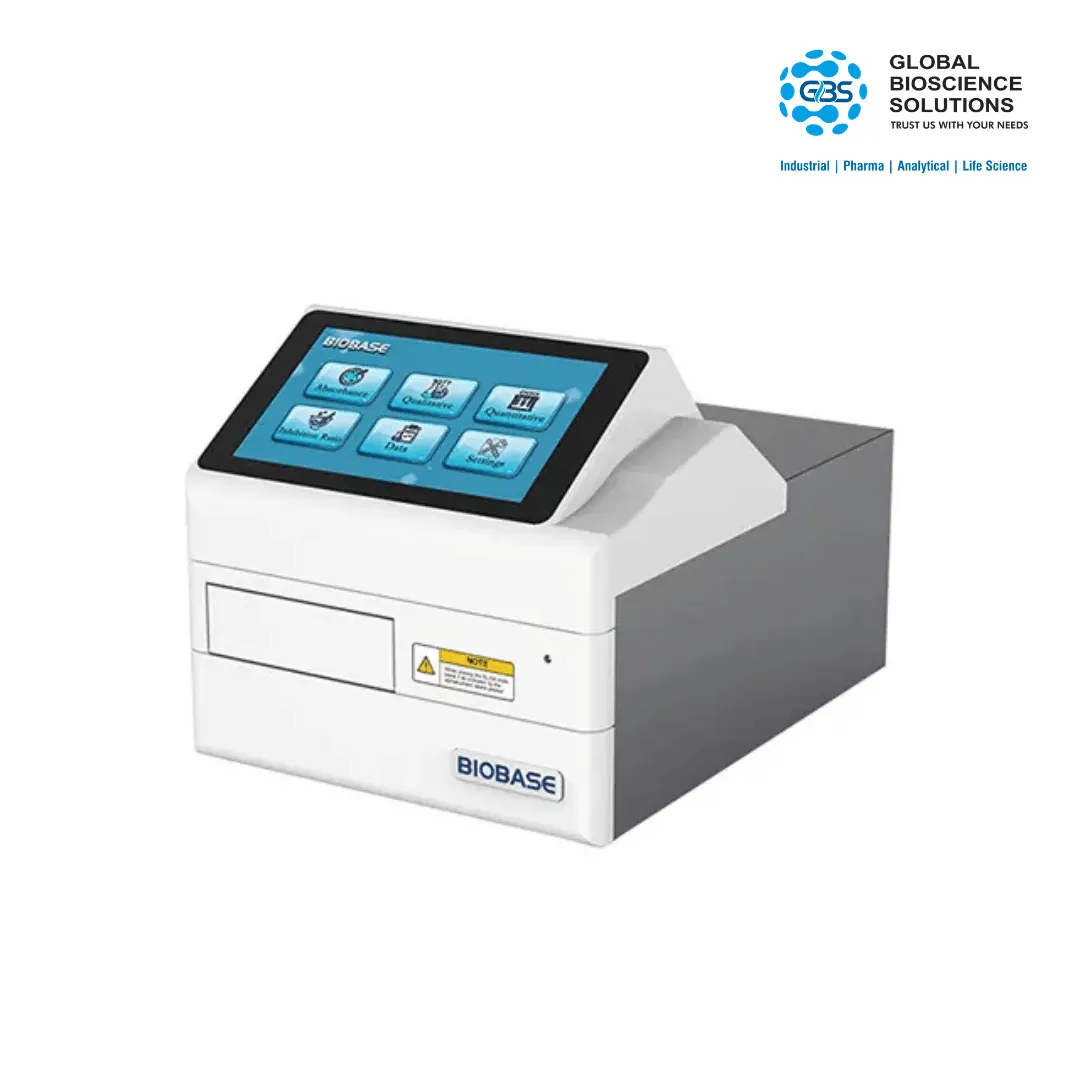

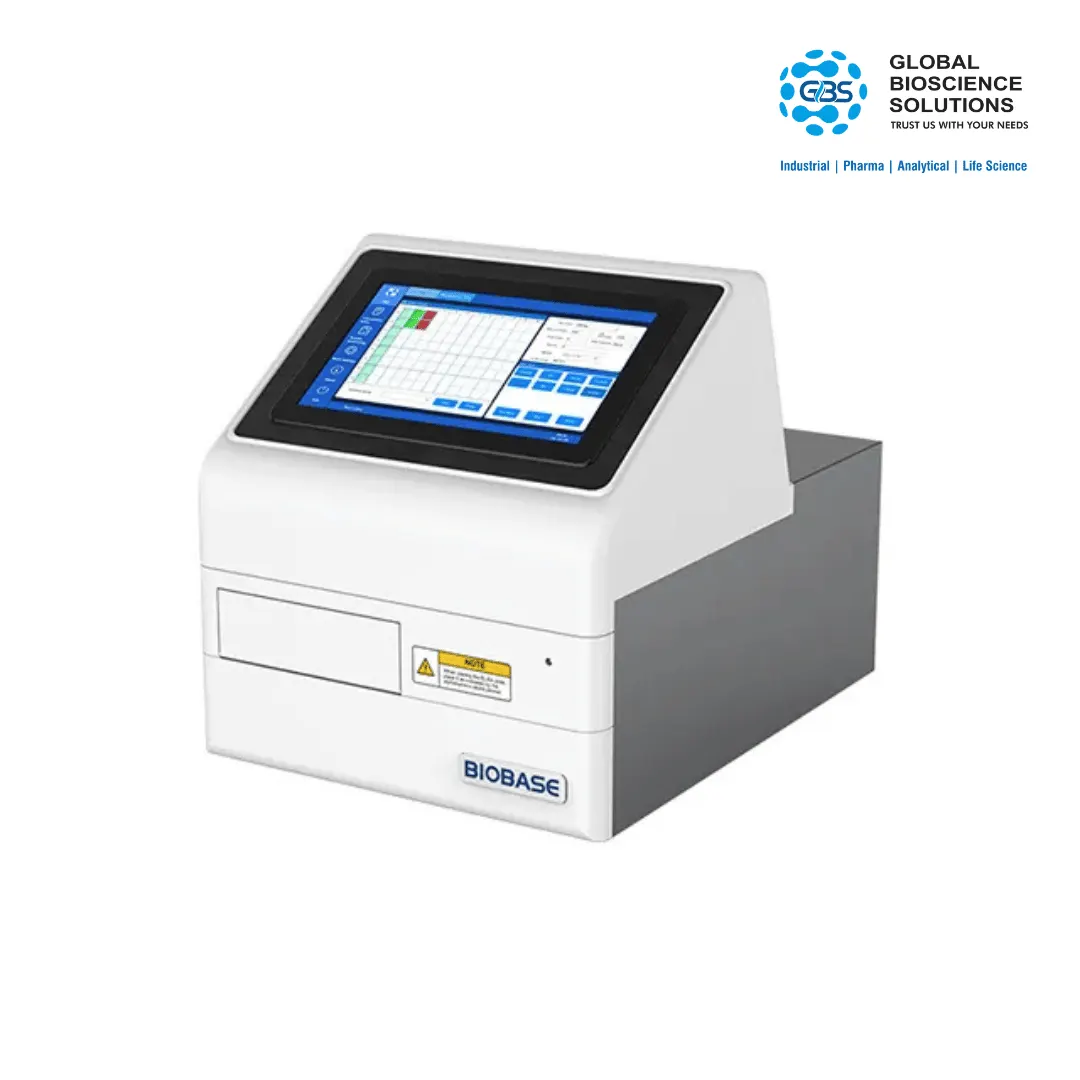

Advanced ELISA Microplate Reader | 96-Well Absorbance
The Advanced ELISA Microplate Reader is a robust, high-precision laboratory microplate reader engineered for fast and highly accurate absorbance measurements. Designed to seamlessly accommodate standard 96 well microplates, it utilizes an advanced vertical 8-channel optics system to scan entire plates in seconds, dramatically increasing throughput for busy clinical and research settings.
Operating as a fully automatic elisa microplate reader, it features an integrated 10-inch touch display that provides complete control over complex assays. With a wavelength range covering 400–750 nm (or 340–850 nm depending on the model), configurable with up to 10 filters, and integrated incubation and shaking capabilities, it serves as the ultimate enzyme immunoassay plate reader.
✓ 8-Channel Optics ✓ Shaking & Incubation ✓ 10" Touchscreen
96-Well Plate
Compatible
Compatible
Vertical 8-Channel
Optics
Optics
10-Inch Touch
Display
Display
Incubation &
Shaking
Shaking
Up to 10 Wavelength
Filters
Filters

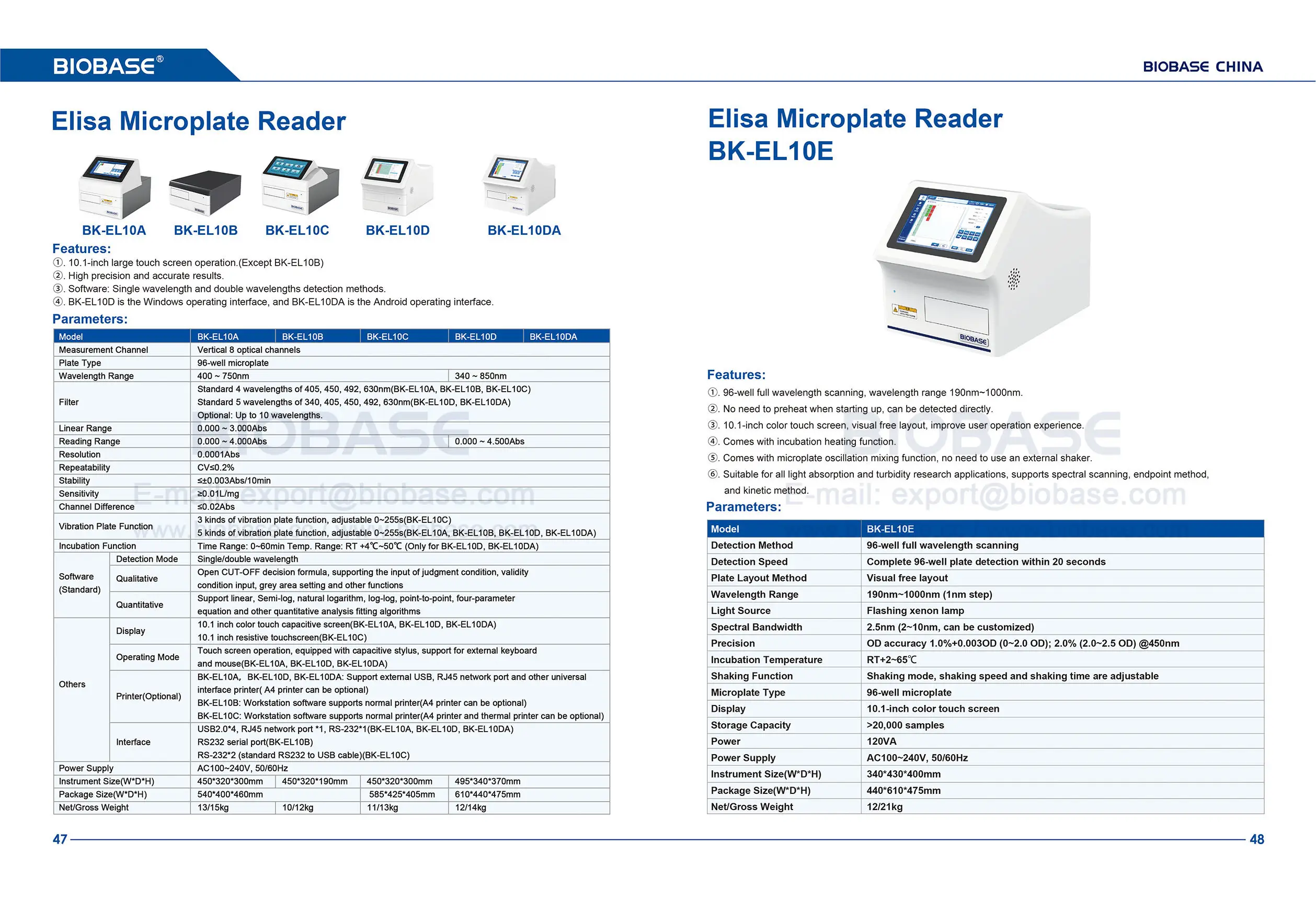

Technical Specifications
Built for unparalleled consistency, this high sensitivity microplate reader guarantees a highly linear response, making it the premier choice for clinical diagnostics and industrial biotechnology testing.
| System & Optical Parameters | |
|---|---|
| Plate Compatibility | microplate reader 96 well plate |
| Optical System | microplate reader 8 channel optics (Vertical) |
| Wavelength Range | microplate reader 400 750 nm (Option for 340-850 nm) |
| Standard Filters | microplate reader 405 450 492 630 nm (Accommodates up to 10) |
| Reading Range | microplate reader reading range 0 4 absorbance |
| Linear Range | plate reader linear range 0 3 absorbance |
| Resolution & Stability | plate reader resolution 0 0001 abs | microplate reader stability ±0 003 abs per 10 min |
| Accuracy (CV) | microplate reader cv ≤0 2 percent |
| Incubation & User Interface | |
| Incubation (Optional) | microplate reader incubation up to 50 degree c |
| Shaking Function | Variable speed elisa reader with shaking function |
| Display | elisa reader with 10 inch touch display |
| Connectivity & Export | microplate reader with usb ports, network rj45 interface, and elisa reader data export and printing |
Key Performance Features
When selecting the best ELISA microplate reader for research labs, software flexibility and optical accuracy are paramount. This model seamlessly integrates both.
-
Advanced Curve Fitting Algorithms The built-in software automatically performs comprehensive microplate reader qualitative and quantitative analysis, executing complex functions like a plate reader four parameter logistic curve fit without requiring an external PC.
-
Dual-Wavelength Analysis Supports both microplate reader single and dual wavelength reading modes, allowing analysts to instantly subtract background noise for highly accurate optical density readouts.
-
Complete Temperature Control Functioning as a premium temperature controlled ELISA reader, the integrated incubator and multi-speed shaker ensure that kinetic assays and enzyme reactions occur under perfectly optimized conditions.
Applications in Diagnostics & Research
From university research to pharmaceutical QC, this high throughput ELISA reader manages the most critical biological analyses required in modern laboratories.
-
Clinical Diagnostics Functions as an essential elisa microplate reader for diagnostic labs. It is heavily utilized as a clinical diagnostics microplate reader for infectious disease elisa tests, viral antibody testing, and analyzing specific disease markers.
-
Pharmaceutical & Biotech Labs A highly reliable microplate reader for pharmaceutical qc and elisa reader for biotech labs. Perfect for microplate reader for quantitative assays such as complex protein concentrations and hormone evaluation.
-
Food & Veterinary Testing Widely deployed as a rugged plate reader for food and veterinary testing to detect allergens, toxins, and specific antibodies in agricultural and food science facilities.
Frequently Asked Questions
An ELISA reader is a specific type of absorbance microplate reader primarily designed to read the colorimetric changes in 96-well plates during Enzyme-Linked Immunosorbent Assays. While multi-mode readers may offer fluorescence, a dedicated ELISA reader focuses strictly on high-precision UV-Vis absorbance.
This model covers a wavelength range absorbance microplate reader spectrum of 400–750 nm (or 340-850 nm depending on configuration). It comes standard with 405, 450, 492, and 630 nm filters, and can hold up to 10 wavelengths for versatile testing protocols.
Yes, this unit acts as an incubation shaker ELISA reader. It features adjustable shaking speeds and a heating block capable of microplate reader incubation up to 50 degree c, making it ideal for running highly sensitive kinetic assays.
No. It operates seamlessly as a standalone touch screen microplate reader with an integrated 10-inch display. The internal software easily handles data processing, curve fitting, and elisa reader data export and printing. You can also connect an external keyboard or mouse.
The advanced microplate reader 8 channel optics system allows for ultra-fast reading of an entire 96-well plate in seconds. It guarantees an exceptional plate reader linear range 0 3 absorbance with a CV ≤ 0.2%, ensuring perfect data reproducibility.
