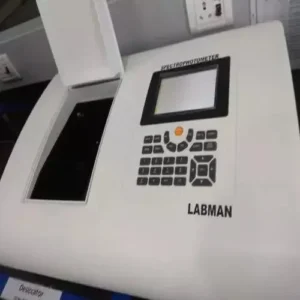

Single beam Spectrophotometer
Category: Spectrophotometers
Extended Range Single Beam UV-Vis Spectrophotometer | 190–1100 nm
Expand your analytical capabilities with our high-precision automatic uv vis spectrophotometer. Designed for versatility, this advanced laboratory uv vis spectrophotometer delivers an extended scanning range of 190 to 1100 nm, allowing researchers and technicians to confidently analyze samples across the ultraviolet, visible, and near-infrared (NIR) spectrum edges.
Equipped with a highly stable dual light source and an automatic wavelength selection mechanism, this digital uv vis spectrophotometer achieves a remarkable wavelength accuracy of ±0.8 nm. Whether deployed in a demanding pharmaceutical facility or an academic testing lab, it ensures repeatable, high-precision results every time.
✓ 190 to 1100 nm Range ✓ ±0.8 nm Accuracy ✓ Auto Wavelength Setting
190–1100 nm
Extended Range
Extended Range
±0.8 nm
High Accuracy
High Accuracy
1200 Lines/mm
Grating
Grating
Dual
Light Source
Light Source
Automatic
Wavelength
Wavelength
Technical Specifications
The following table outlines the exact optical and performance parameters, establishing this instrument as a premier solution for quantitative analysis.
| System & Performance Parameters | |
|---|---|
| Optical System | Single Beam, 1200 lines/mm Holographic Grating |
| Wavelength Range | 190 - 1100 nm |
| Spectral Bandwidth | 2 nm |
| Wavelength Accuracy | ±0.8 nm |
| Photometric Accuracy | ±0.5% T |
| Light Source | Deuterium Lamp & Tungsten Halogen Lamp |
| Sample Compartment | Standard 10 mm path length (Quartz cuvette compatible) |
| Display & Interface | LCD display with USB connectivity and PC Interface |
Key Features of the Extended Range Spectrophotometer
Designed for analytical dominance, this system incorporates several high-end features tailored for precision in modern chemistry and life science laboratories.
-
Extended Wavelength Capacity Unlike standard models, this unit pushes the spectrum from 190 nm up to 1100 nm, capturing critical data at the near-infrared edge for specialized assays.
-
Unrivaled Wavelength Precision Operating with a ±0.8 nm wavelength accuracy and a 2 nm spectral bandwidth, it guarantees exceptional data fidelity for complex protein and nucleic acid measurements.
-
Automated & Intelligent Operation Features an integrated automatic wavelength selection system. Analysts can execute fast measurements seamlessly, completely eliminating manual dial calibration errors.
-
Dual Light Source Technology Equipped with a highly stable deuterium lamp for the UV spectrum and a tungsten-halogen lamp for the visible/NIR range, guaranteeing consistent photometric accuracy without fluctuation.
Industry Applications & Analytical Uses
From fundamental academic research to rigorous industrial quality control, this spectrophotometer scales perfectly to your analytical demands.
-
Pharmaceutical Testing The standard for pharmaceutical testing, enabling researchers to perform highly accurate quantitative analysis, drug assays, and ingredient purity verifications.
-
Life Sciences & Biochemistry An invaluable tool for life science labs, facilitating precise protein nucleic acid estimations and dynamic enzyme kinetics studies.
-
Environmental & Water Quality Functions as a heavily relied upon instrument for water quality testing and broad environmental analysis protocols.
Frequently Asked Questions
The extended 190 to 1100 nm range allows laboratories to conduct analysis further into the near-infrared (NIR) edge. This is crucial for specific quantitative analysis, advanced chemical testing, and specialized pharmaceutical assays that exceed the standard 1000 nm limit.
This microprocessor uv vis spectrophotometer achieves an exceptional wavelength accuracy of ±0.8 nm. It utilizes a precision 1200 lines per mm holographic grating and an automatic wavelength selection system to eliminate manual calibration errors.
It operates using a dual light source system composed of a deuterium lamp and a tungsten-halogen lamp. This combination provides a stable, continuous spectrum across both ultraviolet and visible light ranges.
Absolutely. Its highly intuitive digital interface and robust construction make it an excellent uv vis spectrophotometer for college laboratory use and university teaching facilities, perfectly balancing advanced capabilities with straightforward operation.
To receive the exact uv vis single beam spectrophotometer price, simply submit a quotation request through our integrated form. We will promptly provide a detailed proposal covering instrument costs, delivery, and installation services in India.
