iFuge UC02R Refrigerated Universal Centrifuge
The iFuge UC02R is a premier refrigerated universal centrifuge designed for critical laboratory applications. With a precise temperature range of -10°C to +40°C and a maximum speed of 15,000 RPM (22,388 x g), it ensures optimal sample integrity. This multipurpose cooled centrifuge supports a wide range of rotors (up to 4x100ml swing-out) and features a maintenance-free Brushless DC motor, making it the top choice for clinical hematology, molecular biology, and biotech research.
✓ -10°C to +40°C Cooling ✓ 99 Programs ✓ Auto Rotor Detection
-10°C to 40°C
Refrigeration
Refrigeration
Brushless DC
Motor
Motor
Max Capacity
4 x 100 ml
4 x 100 ml
99 Programs
Memory
Memory
Imbalance
Detection
Detection
Technical Specifications of iFuge UC02R
| iFuge UC02R Performance Data | |
|---|---|
| Max Speed | 15,000 RPM (Variable 500 - 15,000 RPM) |
| Max RCF (g-force) | 22,388 x g |
| Temp Range | -10°C to +40°C (Pre-cooling feature) |
| Max Capacity | 4 x 100 ml (Swing Out & Fixed Angle) |
| Motor Type | Brushless DC Motor (BLDC) |
| Timer Setting | 30 secs to 999 mins & Infinite Mode |
| Display | Large Back-lit LCD Display |
| Programmable | Up to 99 programs (4 lines each) |
| Ramp & Brake | 9 Acceleration / 9 Deceleration Modes |
| Weight | < 57 Kg (without rotor) |
| Safety | Lid Lock, Imbalance Detection |
Product Overview: iFuge UC02R Refrigerated Centrifuge
The iFuge UC02R is a robust universal refrigerated centrifuge engineered for laboratories requiring precise thermal control. It maintains sample integrity for sensitive applications like DNA/RNA extraction, cell pelleting, and PRP platelet-rich plasma preparation. The integrated compressor system allows for temperatures as low as -10°C, making it a reliable partner for biotech and pharmaceutical research.
This multipurpose cooled centrifuge is compatible with a vast array of rotors, from swing-out buckets for large volumes to high-speed fixed angle rotors for microtubes. With auto rotor detection, 99 programmable memories, and a stainless steel chamber, the iFuge UC02R delivers safety, versatility, and performance in one compact unit.
Key Features of iFuge UC02R
-
Precise Cooling (-10°C to +40°C) Ensures 4°C is maintained even at maximum speed, crucial for temperature-sensitive samples.
-
Universal Rotor System Supports multiple rotors including Swing Out (4x100ml) and Fixed Angle (24x2ml, 44x2ml) for versatile use.
-
Auto Rotor Detection Automatically identifies the rotor type and sets safe speed limits to prevent user error.
-
99 Programmable Protocols Save and recall up to 99 programs with 4 sub-steps for consistent and automated workflows.
-
Advanced Safety Features Equipped with motorized lid lock, imbalance detection, and auto cut-off for operator safety.
Compatible Rotors (Sold Separately)
| Rotor Type | Capacity | Max RPM / RCF |
|---|---|---|
| Swing Out | 4 x 100 ml | 4500 RPM / 3164 g |

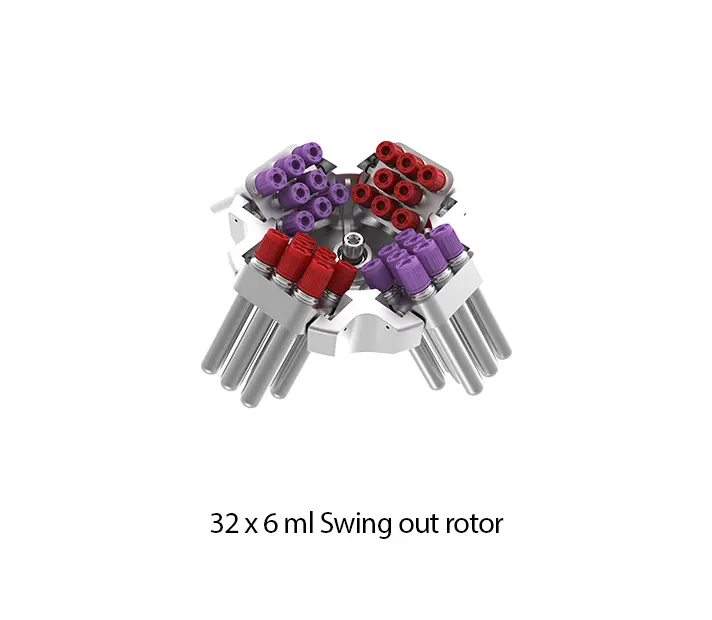

| Swing Out | 32 x 6 ml | 4500 RPM / 3164 g |
| Swing Out | 2 x Microplates | 4500 RPM / 2377 g |
| Fixed Angle | 24 x 2 ml | 15,000 RPM / 21,420 g |
| Fixed Angle | 44 x 2 ml | 15,000 RPM / 22,388 g |
| Fixed Angle | 6 x 50 ml | 4500 RPM / 2834 g |
Applications of Universal Refrigerated Centrifuge
-
Temperature Sensitive Samples Perfect for handling enzymes, proteins, and live cells requiring constant cooling.
-
Clinical Diagnostics Efficient separation of blood, serum, and plasma for diagnostic testing.
-
Molecular Biology High-speed capabilities for DNA/RNA extraction and supernatant separation.
-
PRP & Stem Cells Controlled acceleration/deceleration modes for high-quality PRP platelet separation.
iFuge UC02R Frequently Asked Questions
We offer the best prices for the iFuge UC02R refrigerated centrifuge in India. Contact us for a dealer quote in Bangalore, Mumbai, or Delhi.
Yes, the UC02R allows you to pre-cool the chamber to the desired temperature before starting your run, ensuring sample safety.
The UC02R is the refrigerated version with a temperature range of -10°C to +40°C, while the UC02 is a non-refrigerated universal centrifuge.
Yes, with compatible swing-out or fixed-angle rotors, it can easily centrifuge 15ml and 50ml conical tubes.
It includes Lid Lock Safety, Imbalance Detection, and Auto Rotor Detection to ensure safe and reliable operation.
