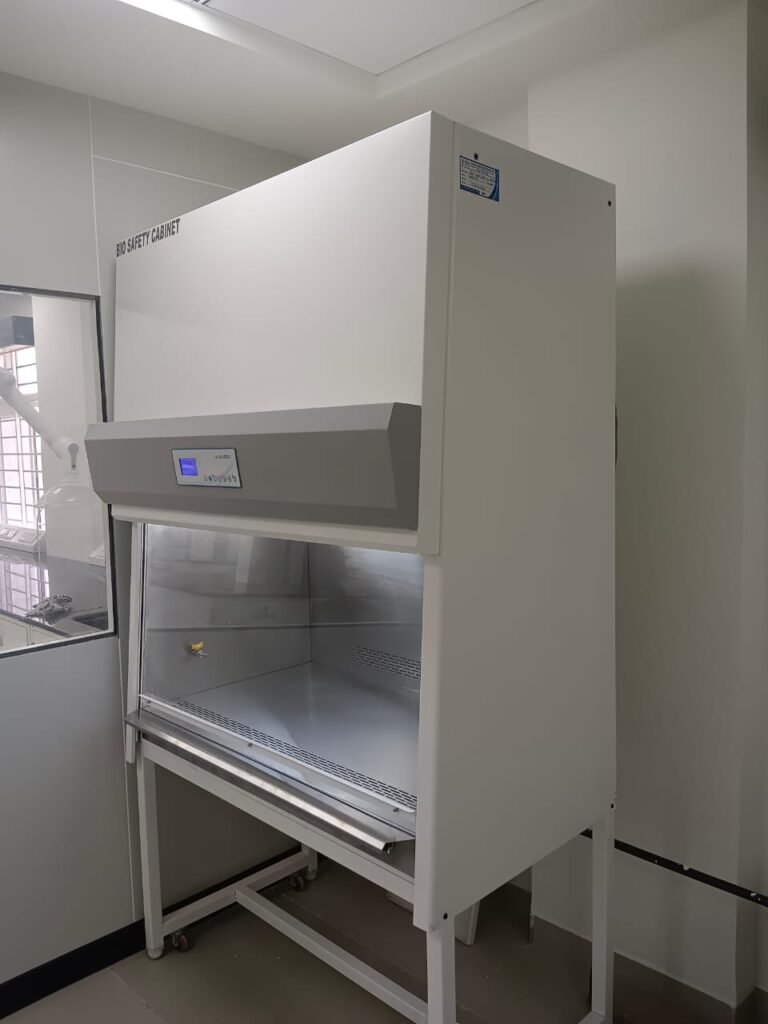

A Biological Safety Cabinet (BSC) is an essential piece of laboratory equipment designed to provide protection for personnel, the environment, and research materials from airborne contaminants and hazardous biological substances. It is widely used in microbiology, pharmaceutical research, hospitals, biotechnology labs, and forensic analysis where sterile and safe conditions are critical.
BSCs utilize HEPA filtration and laminar airflow technology to create a controlled work environment that minimizes contamination risks. With advanced biohazard containment, they play a crucial role in infection control, ensuring compliance with biosafety standards such as NSF/ANSI 49 and ISO 14644-1.
1. HEPA Filtration System for Maximum Protection
A High-Efficiency Particulate Air (HEPA) filter captures 99.99% of airborne particles as small as 0.3 microns, effectively eliminating bacteria, viruses, and contaminants from the airflow.
2. Advanced Laminar Airflow Technology
BSCs use vertical laminar airflow to ensure uniform and contamination-free workspaces, preventing cross-contamination and maintaining aseptic conditions.
3. Class II Biosafety Cabinet (BSC) – Types A2, B1, and B2
- Type A2 BSC – Recirculates 70% of air, suitable for Biosafety Level 2 laboratories.
- Type B1 BSC – Expels a portion of contaminated air, reducing exposure risks.
- Type B2 BSC – 100% air exhaustion, ideal for toxic chemical and biohazard work.
4. Three-Tier Protection System
BSCs provide simultaneous protection for:
Personnel – Prevents exposure to hazardous pathogens.
Environment – Ensures that no biohazard escapes into the lab.
Samples – Maintains sterility, preventing contamination of sensitive materials.
5. Ergonomic and User-Friendly Design
- Adjustable height settings for comfort.
- Anti-glare lighting for enhanced visibility.
- Low noise levels for a better work environment.
6. Compliance with International Biosafety Standards
Certified under NSF/ANSI 49, ISO 14644-1, and OSHA guidelines, ensuring safety and regulatory compliance.
7. Advanced Decontamination and Safety Features
- UV Germicidal Lamp for sterilization.
- Hydrogen Peroxide Fumigation Compatibility for complete decontamination.
- Alarm System for airflow failure and contamination risks.
| Feature | Specification |
|---|---|
| Model | Class II Biological Safety Cabinet (Type A2/B1/B2) |
| HEPA Filter Efficiency | 99.99% at 0.3 microns |
| Airflow Velocity | 0.45 m/s (90 fpm) average |
| Noise Level | ≤ 65 dB |
| Material | Stainless Steel with Powder Coating |
| Lighting | UV Germicidal and LED |
| Control Panel | Digital LCD with Alarm Indicators |
| Power Supply | 220V/50Hz or 110V/60Hz |
| Certifications | NSF/ANSI 49, ISO 14644-1 |
| Decontamination | Hydrogen Peroxide & UV Sterilization |
| Safety Features | Automatic Airflow Monitoring, Alarm System |
| Applications | Microbiology, Pharmaceuticals, Hospitals, Forensic Labs |
1. Microbiological Research Laboratories
Used in BSL-2 and BSL-3 labs for handling pathogenic microorganisms safely.
2. Pharmaceutical and Biotech Industry
Essential for maintaining aseptic conditions in vaccine production and drug testing.
3. Hospital and Clinical Laboratories
Ensures a sterile workspace for disease diagnosis and infection control.
4. Forensic and Veterinary Labs
Prevents contamination while handling biological and forensic evidence.
5. Cleanroom Environments and Food Safety
Used for quality control and pathogen testing in food production facilities.
- Triple Filtration System – Ensures maximum containment of hazardous particles.
- Multiple Size Options – Available in 3ft, 4ft, 5ft, and 6ft models for various applications.
- Intelligent Airflow Monitoring – Maintains consistent airflow and ensures real-time alerts in case of fluctuations.
- Low Energy Consumption – Highly efficient ECM motors for reduced power usage.
- Easy Maintenance and Cleaning – Stainless steel design with removable work trays.
